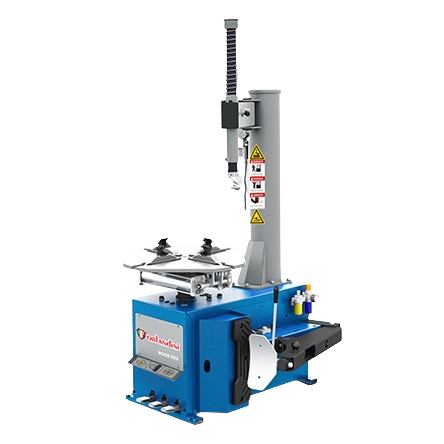

ORLANDINI Rock S22 Semi Automatic Tire Changer 25 Inch
Description:
Rock S22 Tire Changer | GEC Equipment
Upgrade your automotive workshop with the Rock S22 Tire Changer, exclusively supplied by GEC. Engineered for superior durability and efficiency, this heavy-duty machine is designed to handle modern passenger cars, light commercial vehicles, and run-flat tires with absolute precision. With its Italian-designed components and customizable optional accessories, the Rock S22 ensures seamless mounting and demounting, minimizing physical strain while protecting expensive wheel rims.
Key Features & The GEC Advantage
Lifetime Warranty Head: Features a special material demounting head guaranteed to last a lifetime without scratching rims.
Heavy-Duty Construction: Built with a high-strength S41 hexagonal shaft to prevent any deformation during intensive tire demounting.
Enhanced Bead Breaking: Equipped with a variable torque bead breaker arm that increases pressing force by 30%, adapting to diverse tire widths effortlessly.
Premium Valve Chassis: Adopts an Italian-designed seat valve chassis for exceptional air tightness and prolonged service life.
Rim Protection: Comes standard with a turntable protective plate to ensure zero scratching damage to the wheel rim.
Expandable Capability: Highly customizable with optional upgrades like the 241 assistant arm, SR66 lifting device, tire press device, and specialized motorcycle adaptors.
Technical Specifications
Outside Clamping Range: 10" - 22"
Inside Clamping Range: 12" - 25"
Rim Width: 3" - 13"
Max Wheel Diameter: 1010 mm
Working Pressure: 8 - 10 bar
Bead Breaking Force: 2500 kg
Power Supply: 110V / 220V / 380V
Motor Power: 1.1 / 0.85 Kw
Rotation per Minute: 6.5 rpm
Noise Level: < 70dB
Ideal Applications
High-volume auto repair shops and professional tire service centers.
Dealerships servicing standard profile, large profile, and run-flat tires.
Motorcycle repair centers (when equipped with the optional motorcycle adaptor).
Internal Reference:
TSTCXX00025
